OPC UA Driver Configuration Section



The information in this document applies to latest revision.

This driver is made by two modules: opcua_driver.dll and opc_ua_client.exe

Manual configuration:

Step 1:


Browsing of available OPC UA Nodeid's

with a third party OPC UA client (such as - OpcWatch) browse the OPC UA server address space and save the NodeId and namespace index of the tags to monitor.

Step 2:


Creation of protocol configuration database

Go to C:\scada\bin and run protocol_configurator.exe

Open file opcua_database1.db and fill in the nodeid, namespace_index and ioa_control_center columns with the previously saved data

Step 3:


Creation of the new SCADA points

1 - Select the menu: Configure\Configure Units

2 - Press button New

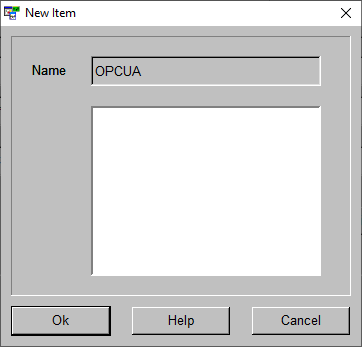

3 - Fill in the edit field Name: OPCUA

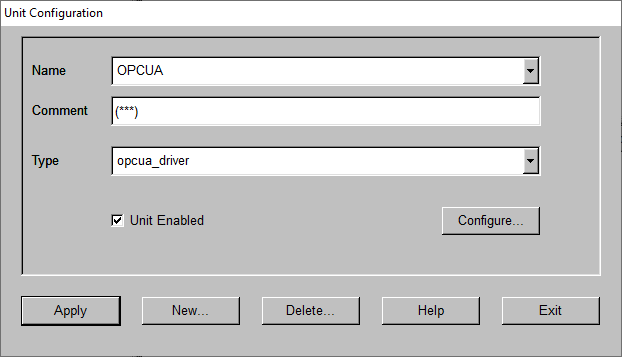

4 - Select Type opcua_driver, flag Unit Enabled and press Configure button

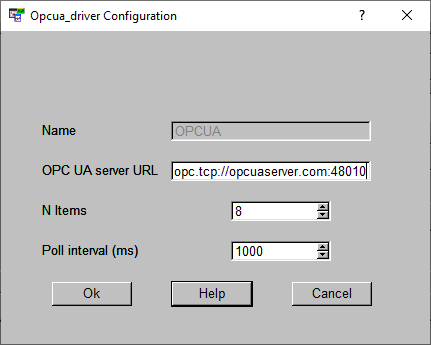

5 - Fill in the OPC UA Server URL, number of Items and Poll Intervall in milliseconds.

6 - Press button Apply and wait that the Apply button returns active and then press Exit

7 - Restart monitor.exe

1
2
3
4
5
6
7

Step 4:


Configure each sample point

8 - Select the menu: Configure\Configure Sample Points

9 - Set Comment, Type, Units and the limits of each new point. Press button Apply

- Set type M_SP_TB_1 for digital OPC point (i.e any scada point that evaluate to 0 and 1)

- Set type M_ME_TF_1 for analog OPC point

8
9

Step 5:


HMI configuration with HMI designer

10 - Run the process C:\scada\bin\hmi_designer.exe

11 - Open the XML designer file in C:\scada\project\hmi0.ui

11.1 - Or create from scratch your HMI (dialog) and save it as hmi0.ui in C:\scada\project

11.2 - It is possible to create from scratch your HMI (dialog) and save it as hmi1.ui or hmi2.ui upto hmi9.ui in C:\scada\project

12 - Use the following widget classes

Widget Class
SINGLE POINT LED PSinglePointLed
DOUBLE POINT LED PDoublePointLed
SINGLE POINT LED SinglePointLed
DOUBLE POINT LED DoublePointLed
SWITCH PSwitch
THERMOMETER QwtThermo
LCD NUMBER PLCDNumber
COMMAND BUTTON QPushButton
TANK PTank
THERMOMETER PThermometer
EDIT FIELD QLineEdit
BREAKER Breaker



13 - Widget names MUST contain the underscore _ as separator between sample point SCADA name and widget ID

For example the widget with SCADA name OPCSample09 and ID 1 has full name: OPCSample09_1

Please see next image 1

1
14 - To enable the inspect popup window, please follow the procedure:

You have to connect the signals RightClicked(QString&,QString&) of the widgets with the slot RightClicked(QString&,QString&) of the HMI dialog (here Form1)
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9
Final result
Working popup on HMI


15 - To enable commands, please follow the procedure:

Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9
